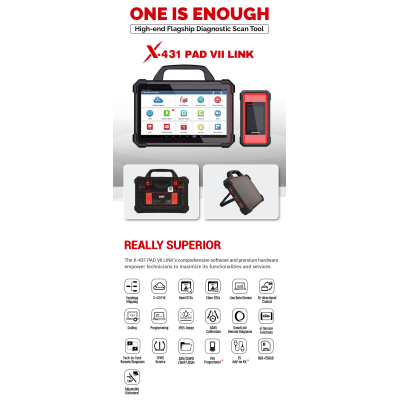

Launch X-431 PAD 7 / PAD VII LINK High-end Flagship Diagnostic Tool

Launch X-431 PAD VII LINK Super Hardware Configuration: Level-Up Configurations: Fast, Accurate, and Results No Delay

• 5G WiFi Communication automatically connects within 20 meters, far better than traditional BT connection in transmission rate, diagnostic
• The remarkably powerful 8-core Cortex-A53 Processor (2GHz) enhances the speed of your programming and diagnostics.
• Experience a visually stunning view with the large and Ultra-sharp 13.3" (1920*1080) Touchscreen, while the Gorilla Glass provides outstanding scratch resistance.
• Benefit from the internal 4G+64G (expandable up to 256G) onboard memory, ideal for storing materials.
• The rechargeable lithium-polymer battery with an impressive capacity of 18,720Ah enables continuous operation for up to 20 hours.
• Connect effortlessly and work from any location in the service bay, thanks to the wireless scanning capability and dual 2.4&5GHz Wi-Fi connection.
• The finely-tuned Android 9.0 KitKat ensures rapid boot-up in just seconds and smooth multitasking.
• IP65 Rating effectively withstands low-pressure jets of water from all directions without any harmful effects.
• 180° Adjustable Kickstand allows for more convenient viewing angles, hands-free operation, and space-saving. It also prevents the diagnostic tool from tipping over or sliding on smooth surfaces.
• Its Sleek & Lightweight Tablet-style design features a capacitive touchscreen that responds to your every gesture.

Launch X-431 PAD VII LINK Multi-language:

English, German, Italian, French, Spanish, Portuguese, Chinese, Korean, Turkish, Swedish, Japanese, Polish, Czech, Russian, Dutch, Thai, Finnish, Danish, Romanian, Arabic, Persian, Hebrew, Croatian

ECU Programming of LAUNCH PADⅦ VS. Other -Covering More Programming

• Online Programming: Mercedes Benz and BMW. Downloading the newer data from the online server and reprogramming it to the ECUs.Updating data and upgrading ECU software version.
• J2534 Programming: Working together with SmartLink VCI (J2534 pass-thru device) to perform J2534 programming.
• Offline Programming: Renault, Nissan, Subaru, Hyundai, Kia, Chery, Jaguar, Land rover, Porsche Program adaptive data for certain ECU modules after repair.

ECU Programming & Coding

Online ECU Programming: For Benz & BMW All Chassis/Series

LAUNCH PAD VII stores the extensive programming data of Ben.z and B.M.W in the cloud server, in case of interrupted access if your hard drive has issues.

Unlike any regular scan tools on the market, this car diagnostic tool intelligently guides you through each necessary ECU programming procedure to find the solution patch, avoiding unnecessary steps, and all are presented in a user-friendly interface that is easy to learn and navigate.

• And the "Programming Backup/Restoration" function is an evolutionary smart solution designed to help you safeguard and restore the original programming data:
• It reverts the ECU data changes back to the previous state, in case of human error, system failure, or data loss that could brick the vehicle computer.
• It allows you to create a backup of your current Values, Adaptations, and other information (such as Advanced ID and Live Data) for a specific control module, and save them into your scan tool as a backup.
• Simply select the saved historical backup record, and you’ll effortlessly get reverted back to the old programming values in a control module.
• Currently this function is compatible with all series of Ben.z vehicles & B.M.W F/G/I chassis models.
• Reminder: Message us to get the “How to Open Online ECU Programming” guidance documents.

J2534 ECU Programming: For More J2534-Compliant Cars

With the SmartLink C VCI Box serving as J2534-1 & -2 pass-thru device (valued at over 2000 bucks), you can easily expand your ECU programming abilities for over 30 car brands (compatible with For.d, V-W, Aud.i, Skoda, Sitter, Land Rover, Jaguar, Porsche, Renault etc.). You don’t need to buy separate OE scan tools for each brand. Reminder: message us to get the “J2534 Operating Manual” for more information.

Highlights of LAUNCH PRO5’s ECU Coding

What separates the LAUNCH PAD VII as a high-end diagnostic scanner from most standard OBD2 scan tools is its advanced ECU Coding. It allows you to connect to the car’s ECU system, set up new car modules, and adjust the original car settings.

• Recode elements of a car’s CPU. This is particularly useful if you need to setup new actuators and wants to make sure that they work in harmony with the rest of the subsystem.
• Personalized Car Settings. Open the hidden car features that are not available in ordinary settings. For example: seat belt alarm, automatic sta.rt/st.op, hidden menu, daytime running lights, cruise control, comfortable windscreen washer, welcome light, and others.

Reminder: Available coding operations vary by the test vehicle. ONLY the available operations display in the menu.

2023 Newly Upgrades for ECU Programming/Coding

• For BMW: expand ECU programming/coding, open hidden functions, modifications … options, up to 2023.
• For Benz: expand offline coding features (open hidden functions) up to 2021; supports manual programming/coding operating options to handle more repair scenarios.
• For VW/Audi: more comprehensive online calibration coding data; support subsystem mode.
• For Nissan/Infiniti: more detailed annotations for coding, e.g. the BCM of the 2018 Nissan Sentra.
• And more.

Launch X-431 PAD VII LINK 99% Worldwide Cars Coverage: One Tool to Cover Almost All Cars

If you’re working in a busy workshop taking care of different car models daily, you won't disappoint with this LAUNCH scanner. It works with as many vehicles and car manufacturer companies as possible.

• For D-PDU/J2534/RP1210 Compliant Cars: this LAUNCH X431 scanner can get more efficient communication with D-PDU & RP1210 compliant cars, covering Land Rover, Jaguar, Volvo, Toyota, GM, Honda, Nissan, BM.W, Ben.z, V-W, Hyundai, Kia, Mazda, Mitsubishi, Chrysler …
• For Commercial Vehicles with DC9-36V: after you purchase the HD software and the non-16pin HD adaptor, you can get turn this scan tool into a 12V/24V HD diagnostic scanner.
• For CAN-FD Compliant Cars: this LAUNCH X431 scanner can get access to CAN-FD (upgraded version of CAN) compliant cars: compatible with GM Models including Onix 2020-2024, Tracker 2020-2024, Suburban 2021-2024, Tahoe 2021-202.3, Montana 202.3-2024, Silverado 2024, Electra E5 2024, Escalade 2021-2024, Escalade ESV 2021-2024, Sierra 2024, Yukon 2021-202.2/2024, Yukon XL 2021-202.2/2024, and Chrysler Models including Grand Cherokee(WL) 2021-202.3, Grand Wagoneer 202.2-202.3.
• For DoIP Compliant Cars: this car scanner can also work on cars adopting DoIP protocol (a new type of protocol allowing fast & reliable communicating even over long distances). Compliant cars include Volvo, Land Rover/Jaguar, BMW F/G Chassis …
• For 2018+ FCA SGW Cars: The LAUNCH scanner can serve as the officially licensed diagnostic tool to get diagnostic access to FCA SGW-equipped cars (including but not limited to 2018-202.3 Fiat, Chrysler, Alfa Romeo, Dodge …). You’ll have the same level of control as you would with non-SGW-equipped vehicles, allowing you to perform diagnostic tasks such as code clearing, bi-directional functions, etc. Simply register with AutoAuth Services to open these capabilities.
• For 2015+ Renault SGW Cars: Once you have the Renault unlo.cking software & device, you can skip the security module and gain unrestricted access to the ECMs of 2015+ Renault RGW-equipped vehicles (including Kadjar, Megane IV, Scenic IV, Talisman, Espace V, Koleos II, Captur II …). With this access, you can carry out advanced diagnostics such as fault code reading and clearing, k.ey programming, and module replacements.

Reminder: This LAUNCH scanner comes with a built-in vehicle compatibility checking module, to help you quickly determine if a certain vehicle model is supported. You can also log in to LAUNCH website to check.

Launch X-431 PAD VII LINK 99% Daily Maintenances: 60+ Basics & Advanced Special Services Included

To save the hassle to search for the most used services in car software, PAD VII thoughtfully integrates the hottest services into the independent “Special Function” module to serve necessary resets/relearns for 99% car models on the road, which include:

60+ Advanced Maintenance Services:

• Guided Functions: Skip the Security Access Code & Channel Number to perform matching, calibration, and basic settings for VW / Audi / Skoda / Seat; **NO extra costs.
• Component Matching: Rematch ECU (control module unit) after the replacement for VW / Audi / Skoda / Seat / BMW / Chrysler / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
• Online Parameterization: Reset all adaptive data in target systems after ECU module replacement; compatible with VW / Audi / Skoda / Seat.
• Online Calibration: For some car systems' calibration; compatible with VW / Audi / Skoda / Seat.
• Online Account Login Service: Access to the login codes for coding, matching, and basic settings of all available systems.
• Programmable Module Installation (PMI): Ensure the correct software/calibration and configuration data are loaded onto the new module after replacement for Ford / Mazda.
• Power Balance: Identify the less productive cylinder for Chrysler / GM / Ford.
• Personalization: Compatible with BMW / Porsche / Toyota / Subaru.
• And many more are coming soon.

Cover the majority of makes and models worldwide up to 2019/2020/2022 for Oil Reset, Injector Coding, Brake Reset, SAS Reset, BMS Service, ABS Bleeding, Throttle Matching, TPMS Reset, Gear Learning, AFS Reset, Gearbox, Sunroof, SUS Reset, Windows Calibration, Seats Calibration, Language Change, A/F Reset, Coolant Bleed, Transport Mode, Adblue Reset, NOx Sensor Reset NOx, Stop/Start Reset, Headlamp Fitting, Seat Matching, Door & Window Initialization Study, Air Suspension Matching, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change, and more.

Your Intelligent Diagnostic Expert: Experience 200% Greater Efficiency

You can expect the LAUNCH X431 PADVII to provide you with extensive knowledge every time you use it. It offers over 10,000GB of a repair database, covering more than 1,600 vehicle models. This is a tremendous aid for those who want expert assistance in fixing car issues:

• 12-in-1 Graphic Live Data Stream: The LAUNCH X431 scanner displays a multi-PID live data stream in dynamic graphics, showing up to 12 PIDs on one screen! This allows you to effortlessly analyze the correlations between different sensors, actuators, and calculated values at a single glance. Every detail, from engine speed to temperature and mass airflow, is presented. Also, you can record/playback the readout or graph, capture screenshots and easily share them.
• DTC Help & Fault Guidance: When reading DTCs, this scan tool also provides a vehicle-specific list of possible causes, and can even provide a list of the most common fixes. Also, it will help you find the fault through step-by-step guidance based on the trouble code.
• Operation Tips: Give you the information needed to clear the faults, simplifying the analysis and repair process. You’ll have a mind-blowing experience like following an expert to fix every hassle you’d meet while repairing.
• Technology Handbook: This car scanner offers an extensive range of valuable information specifically included, such as wiring diagrams, control unit locations, and other repair materials necessary to efficiently accomplish your tasks.
• Training Videos: Here you can check the repair process relevant to specific vehicles in the real world, in videos, to learn new skills, understand complex concepts, and even master specific tasks.

At-A-Glance Topology Mapping: See More, Operate Less

If you have a busy garage with multiple cars awaiting repairs, topology mapping is essential. LAUNCH PAD VII can quickly display faults in a color-coded format, allowing you to locate the issue within minutes. Just click on a module to identify the underlying cause:

• Show All Available Control Units: get a quick scan on all available onboard car systems, and show you the scan results (DTCs) at a glance.
• Color-coded Communication Structure: Red – faulty systems; Green – healthy systems; Grey – unavailable systems; making it much easier for you to understand the layout and structure of the car's electrical system.
• View Diagram Tree in Detail: if a fault code points to a specific sensor issue, you can efficiently pinpoint the sensor and uncover any related components connected to it.
• Click to Identify Underlying Cause: this quick identification of the root cause of a problem can help you instantly determine the underlying issue, saving time and effort.
• Easy to Locate System Faulty Parts: this reduces the chances of misdiagnosis and the risk of replacing unnecessary parts, making sure you’ll have an effective solution.

Launch X-431 PAD VII LINK 99% Daily Maintenances: 60+ Basics & Advanced Special Services Included

To save the hassle to search for the most used services in car software, PAD VII thoughtfully integrates the hottest services into the independent “Special Function” module to serve necessary resets/relearns for 99% car models on the road, which include:

60+ Advanced Maintenance Services:

• Guided Functions: Skip the Security Access Code & Channel Number to perform matching, calibration, and basic settings for VW / Audi / Skoda / Seat; **NO extra costs.
• Component Matching: Rematch ECU (control module unit) after the replacement for VW / Audi / Skoda / Seat / BMW / Chrysler / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
• Online Parameterization: Reset all adaptive data in target systems after ECU module replacement; compatible with VW / Audi / Skoda / Seat.
• Online Calibration: For some car systems' calibration; compatible with VW / Audi / Skoda / Seat.
• Online Account Login Service: Access to the login codes for coding, matching, and basic settings of all available systems.
• Programmable Module Installation (PMI): Ensure the correct software/calibration and configuration data are loaded onto the new module after replacement for Ford / Mazda.
• Power Balance: Identify the less productive cylinder for Chrysler / GM / Ford.
• Personalization: Compatible with BMW / Porsche / Toyota / Subaru.
• And many more are coming soon.

Cover the majority of makes and models worldwide up to 2019/2020/2022 for Oil Reset, Injector Coding, Brake Reset, SAS Reset, BMS Service, ABS Bleeding, Throttle Matching, TPMS Reset, Gear Learning, AFS Reset, Gearbox, Sunroof, SUS Reset, Windows Calibration, Seats Calibration, Language Change, A/F Reset, Coolant Bleed, Transport Mode, Adblue Reset, NOx Sensor Reset NOx, Stop/Start Reset, Headlamp Fitting, Seat Matching, Door & Window Initialization Study, Air Suspension Matching, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change, and more.

Your Intelligent Diagnostic Expert: Experience 200% Greater Efficiency

You can expect the LAUNCH X431 PADVII to provide you with extensive knowledge every time you use it. It offers over 10,000GB of a repair database, covering more than 1,600 vehicle models. This is a tremendous aid for those who want expert assistance in fixing car issues:

• 12-in-1 Graphic Live Data Stream: The LAUNCH X431 scanner displays a multi-PID live data stream in dynamic graphics, showing up to 12 PIDs on one screen! This allows you to effortlessly analyze the correlations between different sensors, actuators, and calculated values at a single glance. Every detail, from engine speed to temperature and mass airflow, is presented. Also, you can record/playback the readout or graph, capture screenshots and easily share them.
• DTC Help & Fault Guidance: When reading DTCs, this scan tool also provides a vehicle-specific list of possible causes, and can even provide a list of the most common fixes. Also, it will help you find the fault through step-by-step guidance based on the trouble code.
• Operation Tips: Give you the information needed to clear the faults, simplifying the analysis and repair process. You’ll have a mind-blowing experience like following an expert to fix every hassle you’d meet while repairing.
• Technology Handbook: This car scanner offers an extensive range of valuable information specifically included, such as wiring diagrams, control unit locations, and other repair materials necessary to efficiently accomplish your tasks.
• Training Videos: Here you can check the repair process relevant to specific vehicles in the real world, in videos, to learn new skills, understand complex concepts, and even master specific tasks.

At-A-Glance Topology Mapping: See More, Operate Less

If you have a busy garage with multiple cars awaiting repairs, topology mapping is essential. LAUNCH PAD VII can quickly display faults in a color-coded format, allowing you to locate the issue within minutes. Just click on a module to identify the underlying cause:

• Show All Available Control Units: get a quick scan on all available onboard car systems, and show you the scan results (DTCs) at a glance.
• Color-coded Communication Structure: Red – faulty systems; Green – healthy systems; Grey – unavailable systems; making it much easier for you to understand the layout and structure of the car's electrical system.
• View Diagram Tree in Detail: if a fault code points to a specific sensor issue, you can efficiently pinpoint the sensor and uncover any related components connected to it.
• Click to Identify Underlying Cause: this quick identification of the root cause of a problem can help you instantly determine the underlying issue, saving time and effort.
• Easy to Locate System Faulty Parts: this reduces the chances of misdiagnosis and the risk of replacing unnecessary parts, making sure you’ll have an effective solution.

Revolutionary Topology Module Mapping

• It is the first application of topology module mapping in the field of automotive diagnostics. In terms of visual aspect, LAUNCH X431 PAD VII ELITE shows different health statuses in different colors and shows the structure of communication between modules. In the aspect of ease of use, it enables you to press the system module to access the system and display the relevant DTCs.

How to Use SmartLink C as J2534 Passthru?

Download the OEM diagnostic software in Automakers’ Service Webs to your computer. You can reach us to get web sites.
Connect the Smartlink C to your computer with the included USB cable, or via the stable and solid 5G Wi-Fi network.
Connect the Smartlink C to your vehicle’s DLC port with/without the included extended OBDII cable.
Download and install the LAUNCH’s J2534 tool at the LAUNCH official site.
Run the “ J2534 tool ” and there you go.

Smartlink remote diagnosis introduction

SmartLink Remote Diagnostics is a brand new remote diagnostic technology that better links remote assistance demanders with professional technicians through the bridge role of SmartLink remote diagnostic service open platform. Professional technicians can carry out remote diagnostic operations on PCs (with J2534 driver and OEM software installed) to assist in the completion of remote diagnostics after users use SmartLink C connector as a J2534 Pass Thru device and connect it to the Ethernet.

NOTE: Remote diagnostic function is not yet open abroad. So you will not get an activation code at present.

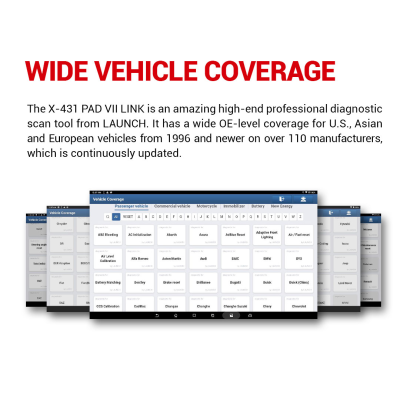

Launch X-431 PAD VII LINK Software Coverage:

Passenger vehicles:

1. Australian: AUST Holden, AUST Ford
2. Asian: Toyota Lexus, Honda/Acura, Mazda, Subaru, Nissan Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
3. European: Audi, Mercedes Maybach, BMW MINI Rolls Royce, VW Bentley Bugatti, Opel Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault Dacia, Fiat Romeo Abarth Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar
4. USA: USA Ford/Lincoln, GM, Buick, Cadillac, Chevrolet, Chrysler, Dodge, Jeep
5. Chinese: Changcheng (Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.

Heavy Duty Vehicles Diagnosis (Optional, software can be purchased in 'Mall'):

Software Coverage:

• Nissan (Diesel)
• Mitsubishi (Diesel)
• USA Ford Diesel, Kenworth
• Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
• Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
• Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
• WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
• Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
• Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
• Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
• HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
• IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
• Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine

Powerful special functions:
Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration
Communicates with ABS & Transmissions from Bendix, Wabco and Allison
Tech to Tech remote communication function

Launch X431 PAD III vs X431 PAD V vs. X431 PAD VII

8 extended function modules (Optional)
